Rotary Dryer for Wood Chips: Key Features and Operational Considerations

Introduction to Rotary Dryers for Wood Chip Processing

Rotary dryers have become an essential piece of equipment in biomass processing, particularly for drying wood chips used in various industries including bioenergy production, pulp manufacturing, and composite board production. These robust drying systems offer numerous advantages over other drying methods, providing efficient moisture reduction while maintaining the quality of the wood material.

The fundamental principle of a rotary dryer involves a rotating cylindrical drum that tumbles wood chips while hot gases pass through, facilitating moisture evaporation. This continuous drying process allows for high throughput while maintaining consistent product quality. As industries increasingly turn to wood biomass as a sustainable resource, understanding the key features of rotary dryers becomes crucial for optimizing operations and ensuring product quality.

Design Features of Rotary Dryers for Wood Chips

Cylindrical Drum Construction

The heart of any rotary dryer is its cylindrical drum, typically constructed from heavy-duty carbon steel or stainless steel depending on the application requirements. The drum's diameter and length are carefully calculated based on the required throughput and moisture reduction targets. Common diameters range from 1.5 to 4.5 meters, with lengths varying from 5 to 30 meters or more for large-scale operations.

The drum's interior features strategically placed flights or lifters that serve multiple purposes. These metal plates run longitudinally along the drum's inner surface and are designed to lift the wood chips as the drum rotates, allowing them to cascade through the hot gas stream. This action significantly increases the surface area exposed to drying conditions, improving heat transfer efficiency.

Material Handling System

Effective material handling is critical in wood chip drying operations. Rotary dryers typically incorporate:

1. Feed System: A controlled feed mechanism ensures consistent material input, preventing overload conditions that could reduce drying efficiency. SCRew conveyors or vibratory feeders are commonly used to meter wood chips into the dryer.

2. Discharge System: The dried product exits through an adjustable discharge chute, often equipped with temperature monitoring to ensure proper drying has occurred. Some systems include classification screens to separate properly dried chips from oversized or under-dried material.

3. Internal Material Flow Control: The drum's rotational speed and angle of inclination (typically 1-5 degrees) work together to control the residence time of wood chips in the drying chamber. This ensures adequate drying without excessive heat exposure that could degrade the material.

Heat Source and Air Flow Configuration

Rotary dryers for wood chips can utilize various heat sources depending on availability and operational requirements:

1. Direct Heating Systems: The most common configuration where hot gases (typically 200-600°C) from a burner directly contact the wood chips. This offers high thermal efficiency but requires careful temperature control to prevent overheating.

2. Indirect Heating Systems: Used when product contamination from combustion gases is a concern. Heat is transferred through the drum wall or internal heat exchangers, though this method typically has lower thermal efficiency.

3. Hybrid Systems: Combine direct and indirect heating elements for specialized applications requiring precise temperature control.

The air flow can be configured as co-current (gas and material flow in the same direction) or counter-current (opposite directions). Co-current flow is generally preferred for wood chips as it exposes the wettest material to the hottest gases initially, reducing the risk of overheating already-dried material.

Operational Features Enhancing Performance

Temperature Control Systems

Precise temperature management is crucial for wood chip drying to:

- Prevent thermal degradation of wood fibers

- Maintain optimal drying rates

- Ensure safe operation by staying below ignition temperatures

Modern rotary dryers incorporate multiple temperature sensors along the drum length, with automated controls that adjust burner output and air flow rates in response to changing conditions. Advanced systems may include infrared sensors to monitor material temperature directly.

Moisture Control and Monitoring

Achieving consistent final moisture content (typically 10-20% for most wood chip applications) requires:

1. Online Moisture Measurement: Near-infrared (NIR) or microwave moisture sensors installed at the discharge end provide real-time moisture data for process control.

2. Residence Time Adjustment: The ability to modify drum rotation speed and inclination angle allows operators to fine-tune drying time based on incoming moisture variations.

3. Humidity Monitoring: Exhaust gas humidity measurements help assess drying efficiency and can trigger adjustments to air flow rates.

Dust and Emission Control

Wood chip drying generates significant dust and potentially volatile organic compounds (VOCs). Effective control systems include:

1. Cyclone Separators: Remove larger particulates from the exhaust stream before further treatment.

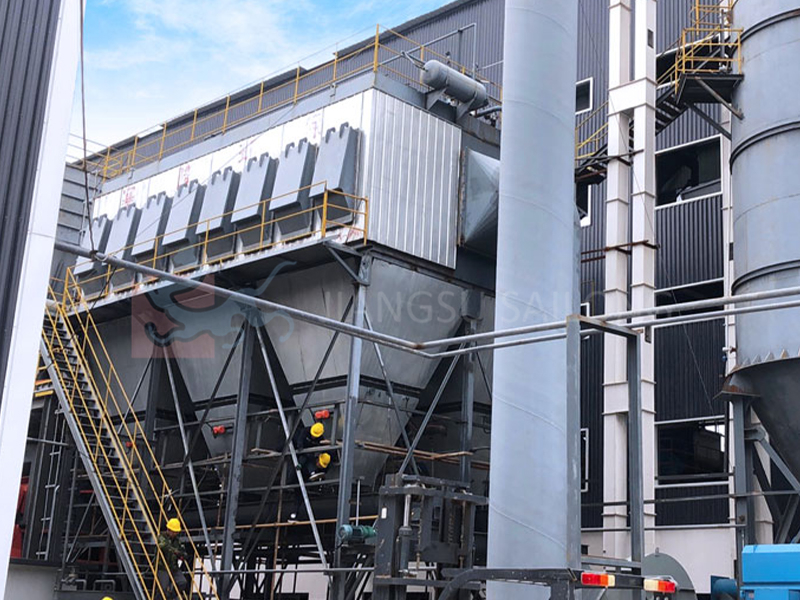

2. Baghouse Filters: Capture fine dust particles with efficiency rates exceeding 99%.

3. Thermal Oxidizers or Biofilters: For operations requiring VOC reduction, these systems destroy or capture organic emissions.

4. Spark Detection and Extinguishing Systems: Critical for fire prevention in the exhaust stream where fine wood dust can be highly combustible.

Safety Features Specific to Wood Chip Drying

Fire Prevention and Suppression

The combination of dry wood material, elevated temperatures, and fine dust creates significant fire risks. Rotary dryers for wood chips incorporate multiple safety measures:

1. Temperature Limit Controls: Automatic shutdown sequences activate if critical temperature thresholds are exceeded.

2. Oxygen Monitoring: Low-oxygen environments in certain dryer zones can prevent combustion.

3. Spark Detection: High-speed sensors detect sparks in the material or exhaust stream, triggering suppression systems.

4. Inerting Systems: Some designs can introduce inert gases (like nitrogen or CO2) to critical zones during abnormal conditions.

5. Explosion Relief Panels: Strategically placed weak points in the drum structure direct potential explosion forces safely away from personnel.

Material Blockage Prevention

Wood chips can sometimes bridge or clog in the dryer. Prevention features include:

1. Vibration Systems: Low-frequency vibrators help maintain material flow in problem areas.

2. Internal Agitators: Rotating arms or additional lifters in high-risk zones prevent material buildup.

3. Reverse Rotation Capability: Some dryers can briefly reverse rotation to clear jams.

Energy Efficiency Features

Modern rotary dryers incorporate numerous features to minimize energy consumption:

Heat Recovery Systems

1. Exhaust Gas Recirculation: A portion of the moist exhaust air is reheated and reintroduced to the drying process, reducing fresh air heating requirements.

2. Thermal Wheels or Heat Exchangers: Recover sensible heat from exhaust gases to preheat incoming combustion air.

3. Condensing Heat Recovery: In some systems, exhaust gases are cooled below their dew point to recover latent heat from water vapor.

Insulation and Heat Retention

1. Ceramic Fiber Insulation: High-temperature insulation blankets reduce radiant heat losses from the drum surface.

2. Double-Wall Construction: Some designs use an air gap between inner and outer shells to minimize conductive losses.

3. Sealed Joints and Flanges: Prevent uncontrolled air infiltration that could disrupt thermal efficiency.

Advanced Combustion Control

1. Modulating Burners: Precisely adjust fuel input based on real-time thermal demand.

2. Oxygen Trim Systems: Maintain optimal air-to-fuel ratios for complete combustion with minimal excess air.

3. Alternative Fuel Capability: Many dryers can operate on various fuel sources (natural gas, biomass, oil) depending on availability and cost.

Maintenance and Serviceability Features

Easy Access Design

1. Large Access Doors: Allow for inspection and maintenance of internal components without extensive disassembly.

2. Modular Flight Design: Individual lifters can be replaced without removing large sections of the drum.

3. External Bearing Mounts: Keep critical support components accessible and protected from heat.

Wear Protection

1. Abrasion-Resistant Liners: Protect high-wear areas where wood chips constantly rub against surfaces.

2. Hard-Faced Flight Tips: Extend the service life of material lifters.

3. Replaceable Wear Plates: At material entry and discharge points where impact is greatest.

Monitoring and Diagnostics

1. Vibration Sensors: Detect abnormal bearing wear or imbalance in rotating components.

2. Thermal Imaging Ports: Allow periodic inspection of drum shell temperatures to identify insulation failures.

3. Automated Lubrication Systems: Ensure proper lubrication of all moving parts according to scheduled intervals.

Specialized Features for Different Wood Chip Types

Softwood vs. Hardwood Processing

1. Adjustable Flight Design: Softwoods may require different lifter configurations than dense hardwoods to achieve optimal cascading action.

2. Variable Speed Drives: Hardwoods often need longer residence times due to their denser structure.

3. Temperature Profiles: Some resinous softwoods require lower maximum temperatures to prevent pitch migration.

Green vs. Pre-Dried Chip Handling

1. Multi-Zone Drying: For very wet green chips, some dryers incorporate distinct drying zones with different temperature and air flow regimes.

2. Pre-Drying Sections: Extended feed chutes may include preliminary drying using waste heat before entering the main drum.

Size-Specific Features

1. Segregation Control: Internal baffles can help maintain a more uniform chip size distribution during drying.

2. Oversize Rejection: Some systems automatically remove excessively large pieces that could disrupt material flow.

Automation and Control Systems

Process Control Integration

Modern rotary dryers typically feature:

1. PLC-Based Control Systems: Programmable logic controllers manage all aspects of dryer operation with preset recipes for different materials.

2. SCADA Interfaces: Supervisory control and data acquisition systems provide operators with comprehensive process visualization and historical data tracking.

3. Remote Monitoring Capabilities: Allow for off-site performance monitoring and troubleshooting.

Advanced Process Optimization

1. Model Predictive Control: Some systems use mathematical models of the drying process to anticipate and compensate for disturbances.

2. Artificial Intelligence Applications: Machine learning algorithms can optimize drying parameters based on historical performance data.

3. Energy Management Systems: Integrate dryer operation with facility-wide energy use patterns for maximum efficiency.

Environmental Considerations

Noise Reduction Features

1. Acoustic Insulation: Special drum coatings and enclosures reduce operational noise levels.

2. Vibration Isolation: Resilient mounts prevent transmission of mechanical noise to building structures.

3. Low-Noise Fan Designs: Specially engineered blowers minimize air flow noise.

Water Conservation

1. Closed-Loop Water Systems: Where water is used for cooling or scrubbing, recycling systems minimize consumption.

2. Dry Gas Cleaning: Preference for filtration over wet scrubbing where possible to avoid water use.

Sustainable Operation Features

1. Biomass-Fueled Options: Ability to use wood waste as the primary heat source.

2. Carbon Footprint Monitoring: Integrated systems track and report greenhouse gas emissions from the drying process.

3. Renewable Energy Integration: Some designs can interface with solar thermal or other renewable heat sources.

Conclusion: Selecting the Right Rotary Dryer for Wood Chips

Choosing an appropriate rotary dryer for wood chip processing requires careful consideration of numerous factors including feedstock characteristics, desired throughput, moisture reduction requirements, and available utilities. The key features outlined in this discussion highlight the technological advancements that make modern rotary dryers efficient, safe, and reliable solutions for biomass drying applications.

By understanding these features and how they interact with specific wood chip properties, operators can select or specify drying equipment that delivers optimal performance while minimizing energy consumption and environmental impact. As wood biomass continues to grow in importance across multiple industries, rotary dryers will remain essential for transforming raw wood chips into consistent, high-quality feedstock for various manufacturing processes.
